Weight: 27,000Kg
Width: 3,170mm
Dipper Arm Length: 2,950mm
Max Digging Depth: 6,580mm

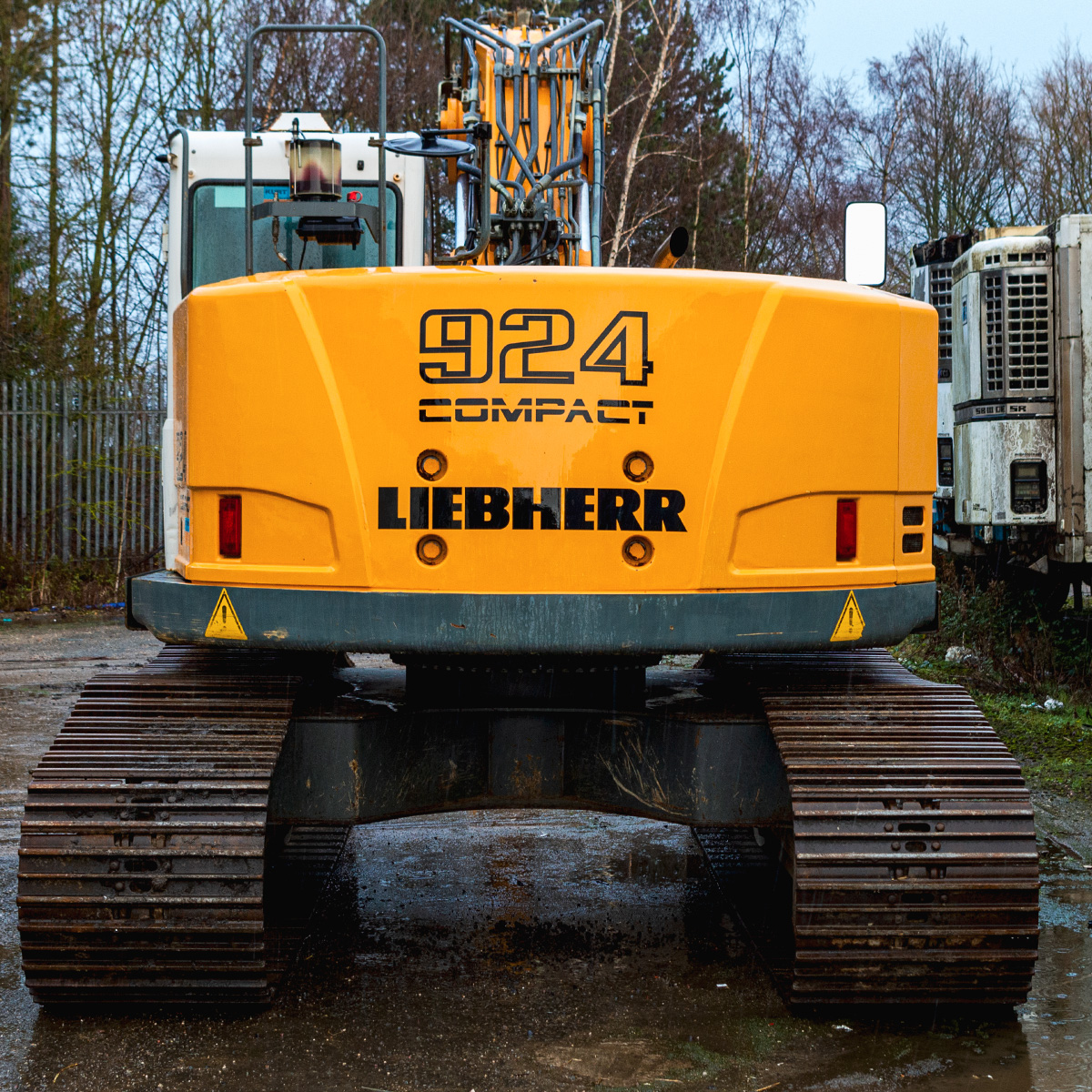

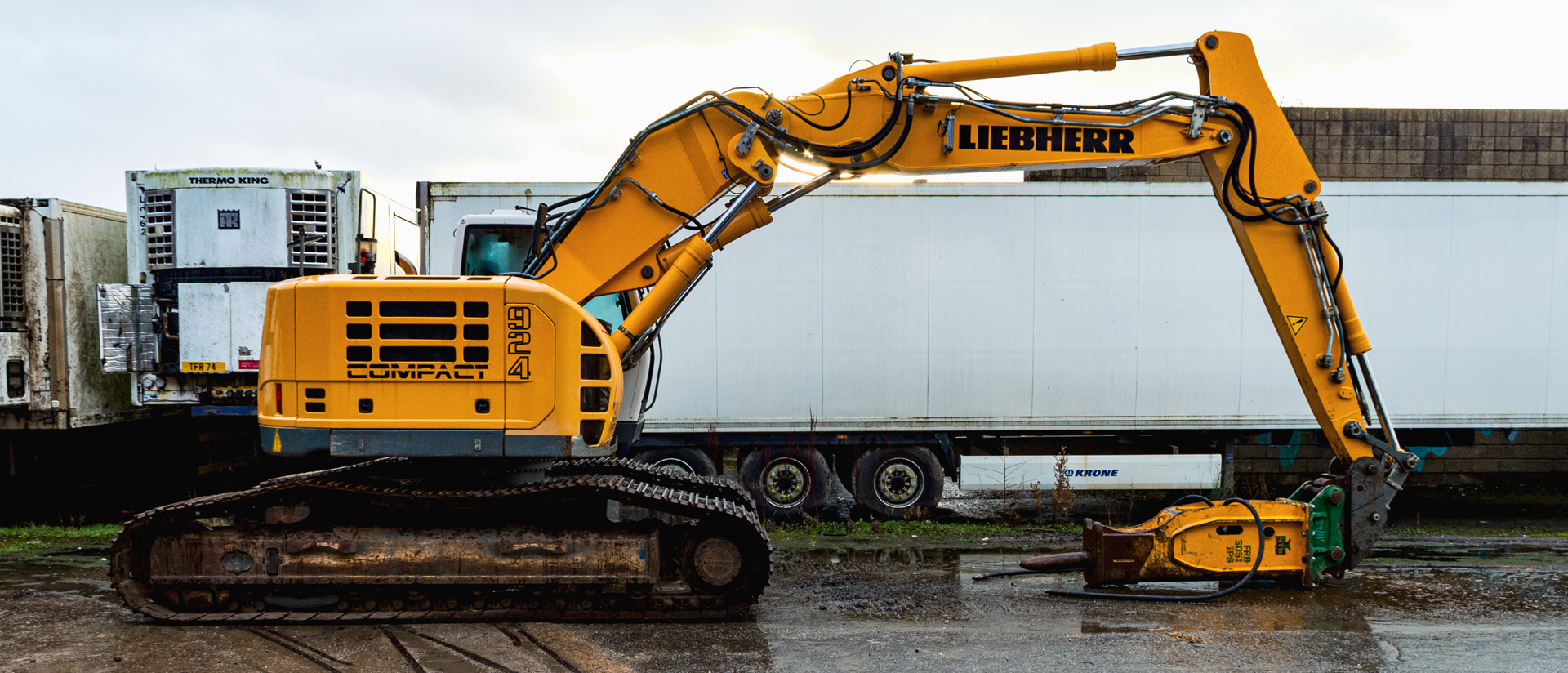

The Liebherr 924 Compact is the combination of the excellent performance characteristics of a standard excavator and the reduced dimensioning of a compact machine.
• Adjustable 2 piece boom.
• Additional 4.3m extension arm also available with this excavator.
• Short Tail Swing.
• 1 Way/2 Way primary auxiliary circuit.
• 2 Way secondary auxiliary circuit.
• Separate auxiliary drain line.
The four cylinder diesel engine designed and manufactured by Liebherr especially for construction machinery, guarantees huge capacity and long operational life as well as complying with the Level lllA / Tier 3 exhaust standard. At the same time, the 924 Compact with this engine power is the most powerful excavator in its class. Unique for a compact excavator is the crafty so-lution for the longitudinal mounting of the powerpack.
• Adjustable 2 piece boom.
• Additional 4.3m extension arm also available with this excavator.
• Short Tail Swing.
• 1 Way/2 Way primary auxiliary circuit.
• 2 Way secondary auxiliary circuit.
• Separate auxiliary drain line.
The four cylinder diesel engine designed and manufactured by Liebherr especially for construction machinery, guarantees huge capacity and long operational life as well as complying with the Level lllA / Tier 3 exhaust standard. At the same time, the 924 Compact with this engine power is the most powerful excavator in its class. Unique for a compact excavator is the crafty so-lution for the longitudinal mounting of the powerpack.
| Engine: | Liebherr D 934 S |
| Power: | 163 hp (120 kW) at 1800 rpm |
| Weight (Kg): | 27,000 |
| Width (mm): | 3,170 |
| Dipper Arm Length (mm): | 2,950 |
| Max Digging Depth (mm): | 6580 |
Excavator weight range (T): 18.0 – 30.0
Operating weight (Kg): 1766
Tool diameter (mm): 140
Excavator weight range (T): 21.0 – 45.0
Operating weight (Kg): 3500
Feeder opening (mm): 800 x700
Excavator weight range (T): 14.0 – 25.0
Operating weight (Kg): 1092
Drum volume (L): 980
Excavator weight range (T): 18.0 – 30.0
Operating weight (Kg): 1060
Plate width (mm): 900
Excavator weight range (T): 18.0 – 34.0
Self weight excl. saddle (Kg): 1670
Jaw opening (mm): 2200
Excavator weight range (T): 20.0 – 35.0
Self weight excluding saddle (Kg): 2300
Jaw opening (mm): 875
Cycle Time (seconds): 1.9 / 1.3
Closing force at throat (tonnes): 228
Excavator weight range (T): 28.0 – 50.0
Self weight excluding saddle (Kg): 2450
Jaw opening (mm): 1000
Closing Force (T): 125
Excavator Weight Range (T): 16 – 24
Width (ft): 7
Pin Size (mm): 80
No of Tines: 11
24″ digging bucket on 80mm pins, 311mm wide and 450mm pin centres.
36″ digging bucket on 80mm pins, 311mm wide and 450mm pin centres.
48″ digging bucket on 80mm pins, 311mm wide and 450mm pin centres.
60″ digging bucket on 80mm pins, 311mm wide and 450mm pin centres.
84″ grading bucket on 80mm pins, 311mm wide and 450mm pin centres.
Excavator Weight Range (T): 13.0 – 25.0
Working Load Limit (Kg): 2,500
Pin Size (mm): 65/80
60″ wide riddle bucket on 80mm pins, ___mm wide and ___mm pin centres.
Excavator weight range (T): 16.0 – 25.0
Bucket width (inches): 60
Rib spacing (mm): __
