Weight: 9,020Kg (with extra counter weight)
Width: 2,200mm / 2,465mm
Dipper Arm Length: 2,120mm
Max Digging Depth: 4,510mm

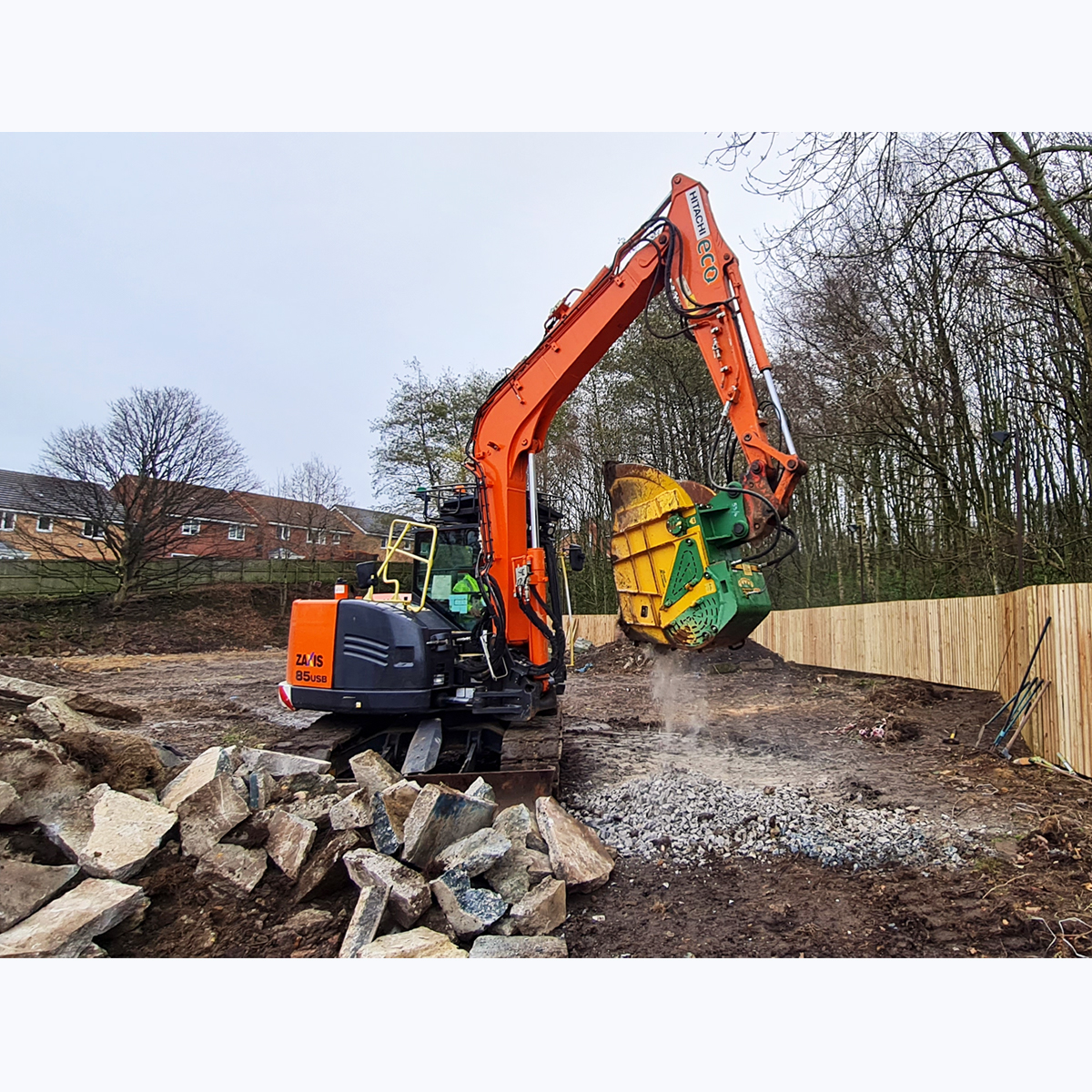

The ZX85USB‑5 is one of the smallest Zaxis‑5 excavators and is ideal for confined spaces, thanks to its short‑tail swing. Available with a variety of options, including a blade for grading, dozing or additional stability, it is exceptionally versatile for a wide range of applications.
• Short tail swing.
• Blade.
• Hydraulic Quick Hitch.
• 1 Way/2Way primary auxiliary circuit.
• 2 Way secondary auxiliary circuit.
• Separate auxiliary drain line.
The reliable Stage IIIA-compliant generation engine in the ZAXIS 85USB delivers higher productivity, with greater fuel efficiency and is fitted with state-of-the-art controls throughout all of the components. With a maximum torque of 204.1 Nm (20.8 kgfm) at 1 000 min-1 (rpm), this becomes an impressive machine on site. The Yanmar 4TNV94L, 4-cycle water-cooled, direct injection delivers higher productivity with a 9% reduction in fuel consumption (PWR mode vs ZX-3 P-mode).
• Short tail swing.
• Blade.
• Hydraulic Quick Hitch.
• 1 Way/2Way primary auxiliary circuit.
• 2 Way secondary auxiliary circuit.
• Separate auxiliary drain line.
The reliable Stage IIIA-compliant generation engine in the ZAXIS 85USB delivers higher productivity, with greater fuel efficiency and is fitted with state-of-the-art controls throughout all of the components. With a maximum torque of 204.1 Nm (20.8 kgfm) at 1 000 min-1 (rpm), this becomes an impressive machine on site. The Yanmar 4TNV94L, 4-cycle water-cooled, direct injection delivers higher productivity with a 9% reduction in fuel consumption (PWR mode vs ZX-3 P-mode).
| Engine: | Yanmar 4TNV94L |
| Power: | 204.1 Nm @ 1,000 min-1 (rpm) |
| Weight (Kg): | 9,020 |
| Width c/w Bog Tracks (mm): | 2,465 |
| Width c/w Crawler Tracks (mm): | 2,200 |
| Bog Track Grouser Pad Width (mm): | 700 |
| Std Track Crawler Pad Width (mm): | 450 |
| Dipper Arm Length (mm): | 2,120 |
| Max Digging Depth (mm): | 4,510 |
Excavator weight range (T): 6.0 – 8.0
Auger flight diameters available:
150mm (6″)
225mm (9″)
300mm (12″)
450mm (18″)
600mm (24″)
800mm (32″)
Excavator weight range (T): 6.0 – 9.0
Operating weight (Kg): 375
Tool diameter (mm): 75
Excavator weight range (T): 4.0 – 10.0
Operating weight (Kg): 380
Plate Width (mm): 550
Excavator weight range (T): 7.5 – 14.0
Operating weight (Kg): 1200
Feeder opening (mm): 600 x 550
36″ riddle bucket to suit various excavator ‘pick-ups’.
Excavator weight range (T): 3.0 – 10.0
Bucket width (inches): 36
Rib spacing (mm): 55
Excavator Weight Range (T): 6.0 – 13.0
Working Load Limit (Kg): 1,000
Pin Size (mm): 45/50/60
Excavator weight range (T): 3.0 – 11.0
Suits most excavators using a bolt on saddle
Excavator weight range (T): 4.0 – 9.0
Operating weight (Kg): 372
Drum volume (L): 180
