Product Description

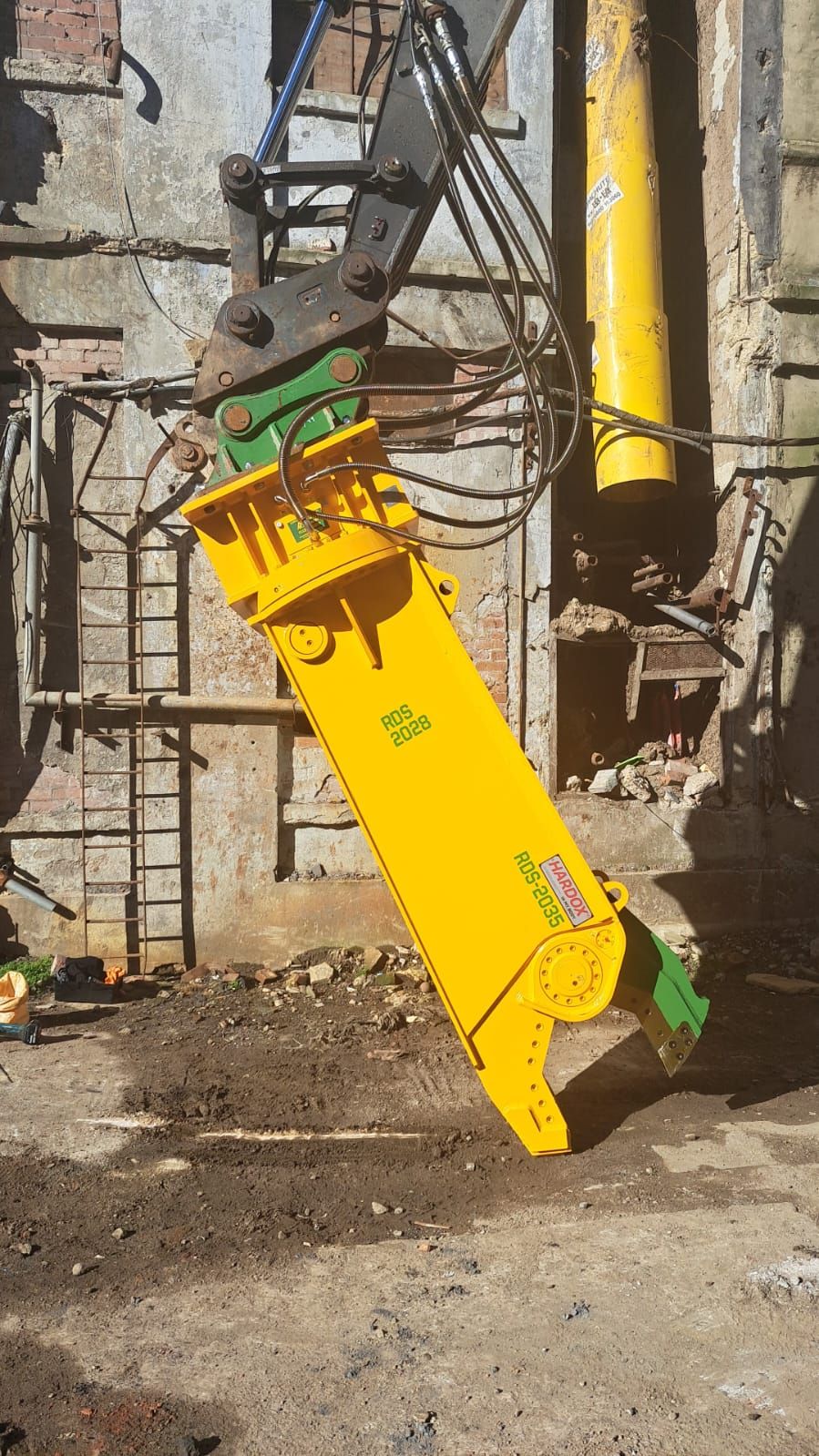

Perfect for use in recycling yards or demolition sites Rotating Dedicated Shears offer extremely high and optimised cutting force through the geometry of the construction.
The cutting force is optimised by creating maximum leverage power at the point where the most force is required, to cut metal, which is a different point when crushing concrete.
Our products are not just designed to perform brilliantly but are also built to last with highly resistant wear casting, wide pivot bearing to reduce flex between jaws, inverted ram to reduce the vulnerability of chrome, better designed locking mechanism for wear parts and the ram rod and eye are one piece for strength.
Key Features
• Our products are not just designed to perform brilliantly, but are also built to last
• Wear parts are made of highly wear resistant casting
• Special wide pivot bearing to reduce flex between jaws
• Inverted ram to reduce vulnerability of chrome
• Harder rod chrome
• Better designed locking mechanism for wear parts
• Ram rod eye are one piece for strength
Product Description
Perfect for use in recycling yards or demolition sites Rotating Dedicated Shears offer extremely high and optimised cutting force through the geometry of the construction.
The cutting force is optimised by creating maximum leverage power at the point where the most force is required, to cut metal, which is a different point when crushing concrete.
Our products are not just designed to perform brilliantly but are also built to last with highly resistant wear casting, wide pivot bearing to reduce flex between jaws, inverted ram to reduce the vulnerability of chrome, better designed locking mechanism for wear parts and the ram rod and eye are one piece for strength.
Key Features
• Our products are not just designed to perform brilliantly, but are also built to last
• Wear parts are made of highly wear resistant casting
• Special wide pivot bearing to reduce flex between jaws
• Inverted ram to reduce vulnerability of chrome
• Harder rod chrome
• Better designed locking mechanism for wear parts
• Ram rod eye are one piece for strength
| Excavator Weight Range | 20T - 28T |
| Operating Weight | 2150kg |
| Jaw Opening | 500mm |
| Cutting Depth | 530mm |
| Height | 3030mm |
| Width | 760mm |
| Working Pressure | 300 - 350 Bar |
| Cutting Steel Rod | 65mm |
| Cutting Steel Pipe | 220 x 8mm |
| Cutting Angle Iron | 200 x 15mm |
| Cutting Steel Plate | 16mm |
| Cutting H-Beam | 360mm |
| Cutting I-Beam | 280mm |
| Cutting Force (Tip) | 75T |
| Cutting Force (Mouth) | 200T |
| Cutting Force (Pivot) | 780T |
| Cycle Time | 7 sec |
