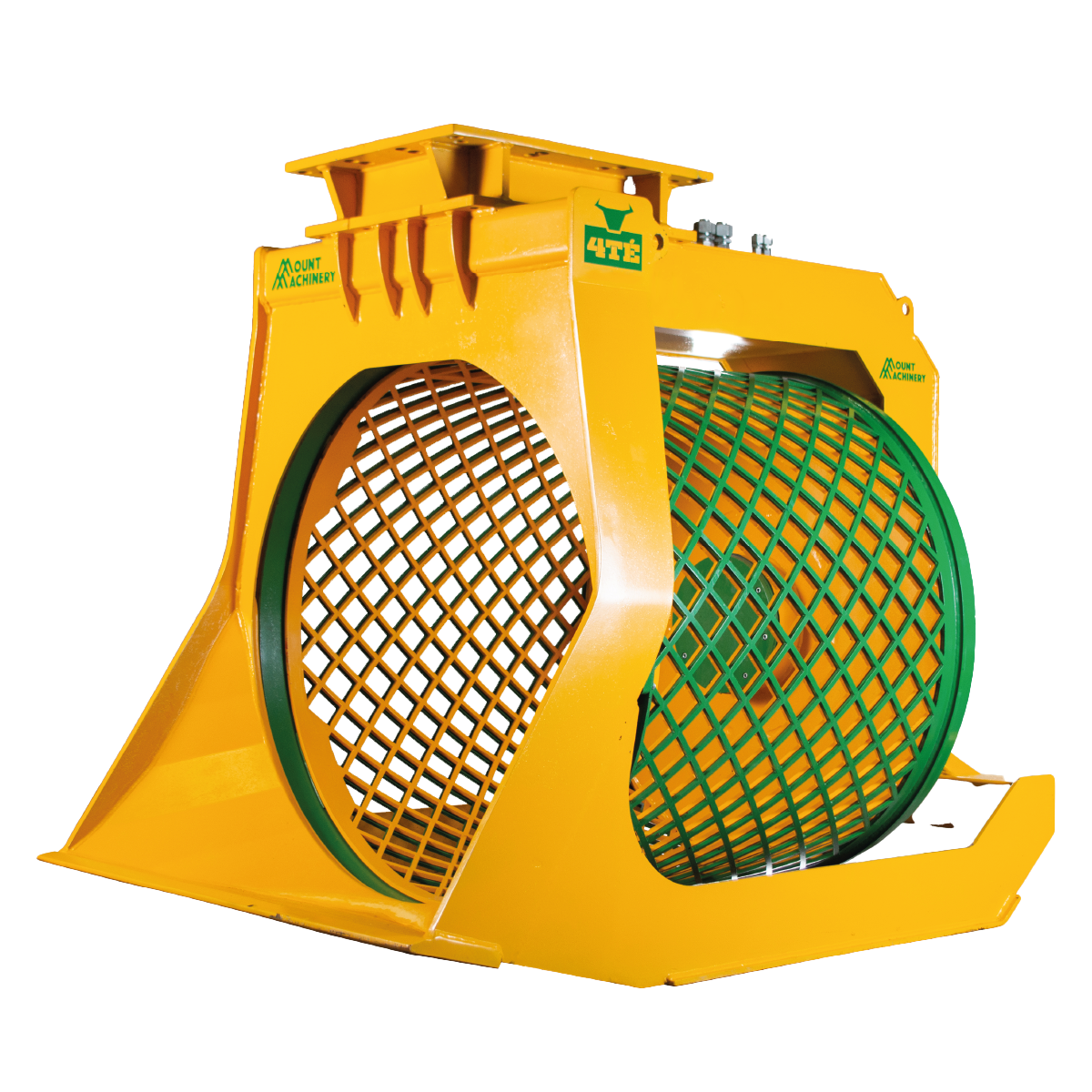

Hydraulically adjustable screening bucket; the material output size can be adjusted within seconds! No need for drum mesh plates to be replaced as this is two drums (one inside the other) and is controlled from the cab.
Excavator weight range (T): 5.0 – 7.0
Operating weight (Kg): 372
Dimension A: 800
Dimension B: 1200
Dimension C: 920
Dimension D: 650
Oil Flow: 15-80 (lpm)
Working Pressure: 350 Bar
Screen Mesh Output Size: 25-60mm
Excavator weight range (T): 7.0 – 10.0
Operating weight (Kg): 434
Dimension A: 900
Dimension B: 1400
Dimension C: 1000
Dimension D: 760
Oil Flow: 15-80 (lpm)
Working Pressure: 350 Bar
Screen Mesh Output Size: 25-60mm
Excavator weight range (T): 10.0 – 14.0
Operating weight (Kg): 640
Dimension A: 1000
Dimension B: 1550
Dimension C: 1120
Dimension D: 870
Oil Flow: 30-150 (lpm)
Working Pressure: 350 Bar
Screen Mesh Output Size: 25-60mm
Excavator weight range (T): 25.0 – 35.0
Operating weight (Kg): 2300
Dimension A: 1800
Dimension B: 2300
Dimension C: 1950
Dimension D: 1550
Oil Flow: 30-150 (lpm)
Working Pressure: 350 Bar
Screen Mesh Output Size: 25-60mm
Excavator weight range (T): 14.0 – 25.0
Operating weight (Kg): 1092
Dimension A: 1250
Dimension B: 1800
Dimension C: 1500
Dimension D: 1124
Oil Flow: 30-150 (lpm)
Working Pressure: 350 Bar
Screen Mesh Output Size: 25-60mm
