Product Description
A extremely effective compaction tool to enable you to speed up the backfill process in deep drainage, deep excavations, pipelines, embankments and more.

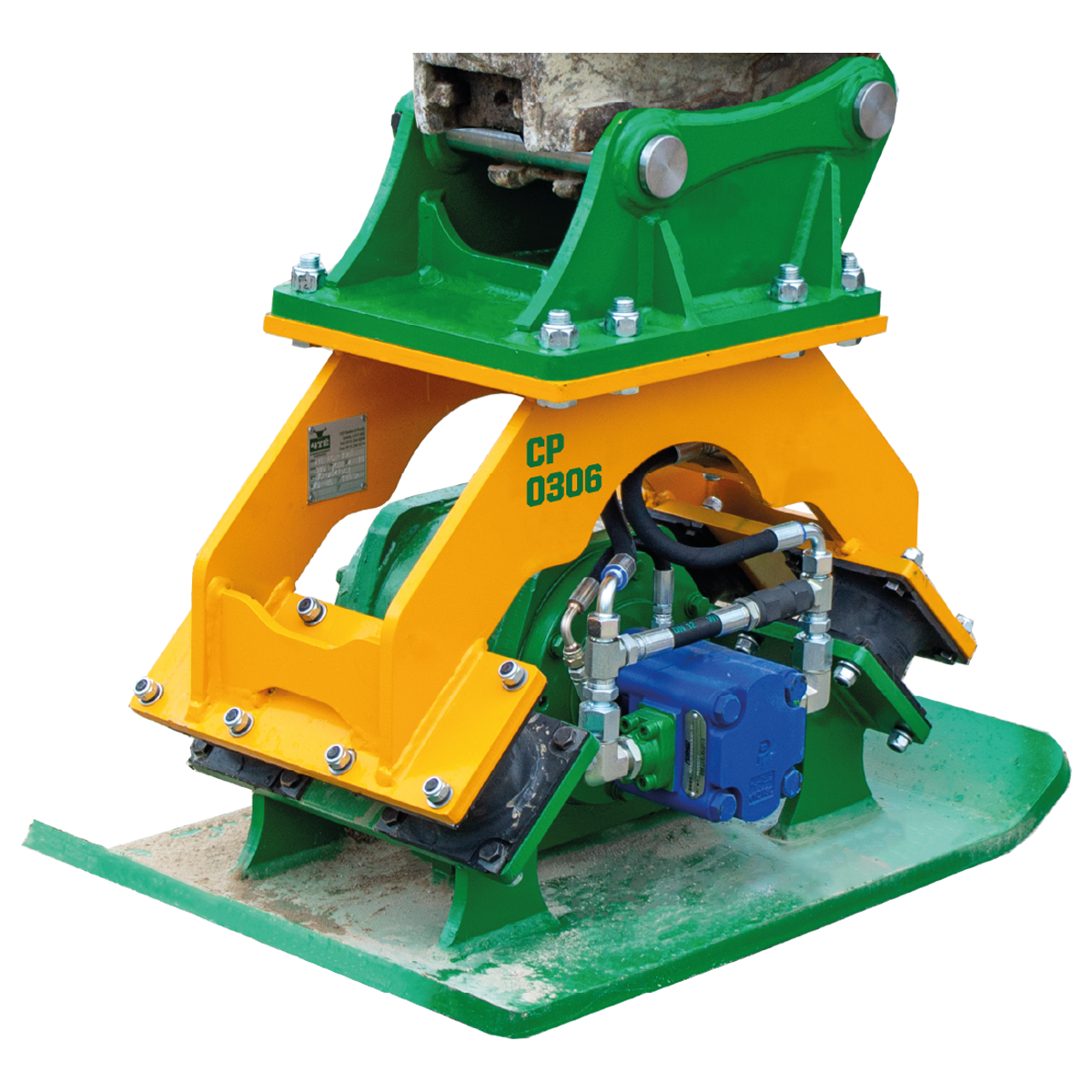

Made to suit excavators from 3T – 6T, the CP-0306 Compactor Plate is more manipulative and stable than self-propelled remote control compactors. The force of compaction is far more effective with the powered-down assistance from the excavator.
Key Features
• Ideal for deep drainage projects
• Vigorous compaction
• No more settlement
• Non-return valve-protects against damage caused by backpressure from the excavator
• Cross-line relief valve – takes the stress off the motor allowing unforced momentum slow down
• Self-lubricating bearing proves better longevity
• Hoses favourably positioned inside the housing to reduce vulnerability
Product Description
A extremely effective compaction tool to enable you to speed up the backfill process in deep drainage, deep excavations, pipelines, embankments and more.
Made to suit excavators from 3T – 6T, the CP-0306 Compactor Plate is more manipulative and stable than self-propelled remote control compactors. The force of compaction is far more effective with the powered-down assistance from the excavator.
Key Features
• Ideal for deep drainage projects
• Vigorous compaction
• No more settlement
• Non-return valve-protects against damage caused by backpressure from the excavator
• Cross-line relief valve – takes the stress off the motor allowing unforced momentum slow down
• Self-lubricating bearing proves better longevity
• Hoses favourably positioned inside the housing to reduce vulnerability
| Excavator Weight Range | 3T - 6T |
| Operating Weight | 355kg |
| Height | 700mm |
| Plate Width | 550mm |
| Plate Length | 900mm |
| Vib Frequency | 2000 rpm |
| Oil Flow | 40 - 65 lpm |
| Working Pressure | 100 - 130 Bar |
