Product Description
A extremely effective compaction tool to enable you to speed up the backfill process in deep drainage, deep excavations, pipelines, embankments and more.

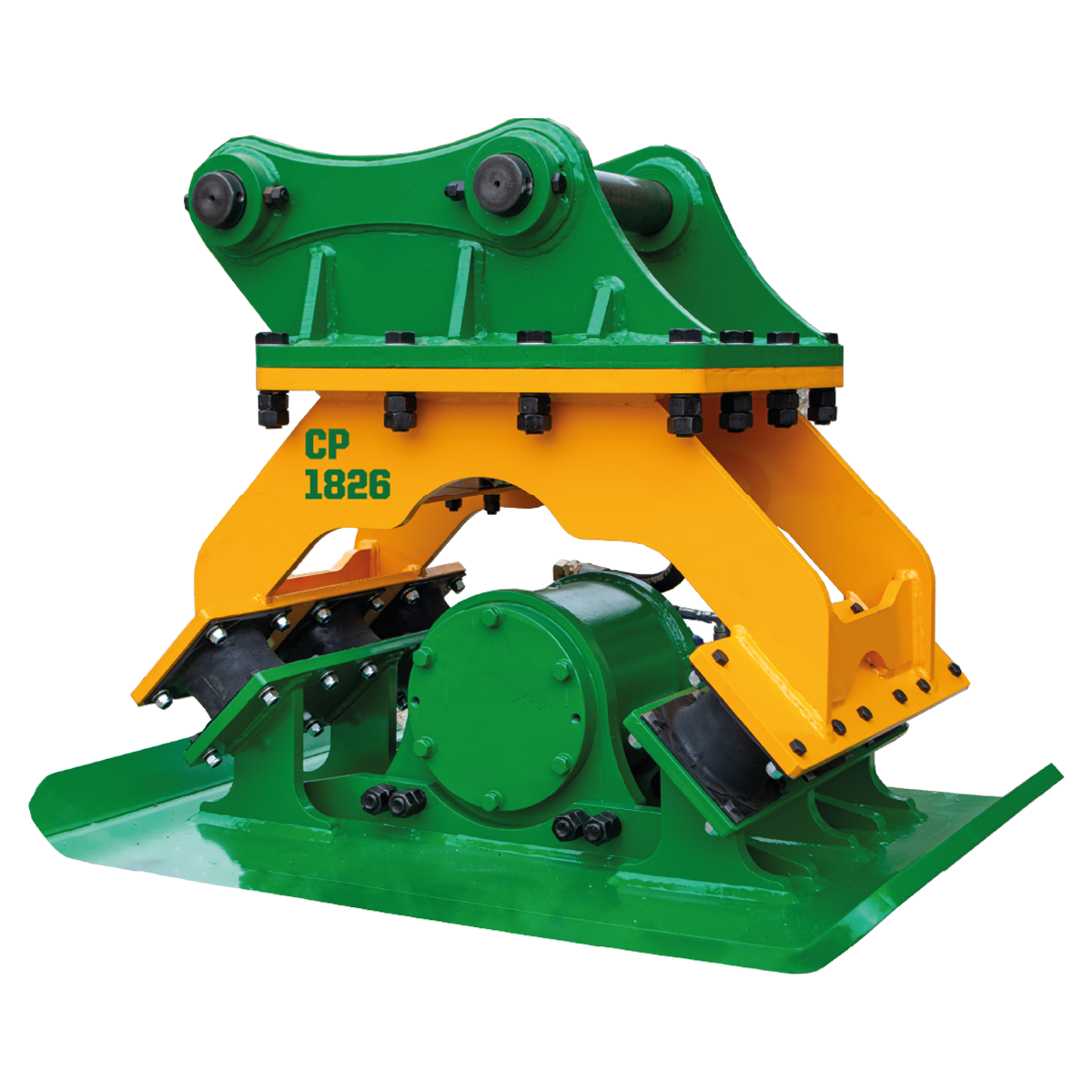

Made to suit excavators from 18T – 26T, the CP-1826 Compactor Plate is more manipulative and stable than self-propelled remote control compactors. The force of compaction is far more effective with the powered-down assistance from the excavator.
Key Features
• Ideal for deep drainage projects
• Vigorous compaction
• No more settlement
• Non-return valve-protects against damage caused by backpressure from the excavator
• Cross-line relief valve – takes the stress off the motor allowing unforced momentum slow down
• Self-lubricating bearing proves better longevity
• Hoses favourably positioned inside the housing to reduce vulnerability
Product Description
A extremely effective compaction tool to enable you to speed up the backfill process in deep drainage, deep excavations, pipelines, embankments and more.
Made to suit excavators from 18T – 26T, the CP-1826 Compactor Plate is more manipulative and stable than self-propelled remote control compactors. The force of compaction is far more effective with the powered-down assistance from the excavator.
Key Features
• Ideal for deep drainage projects
• Vigorous compaction
• No more settlement
• Non-return valve-protects against damage caused by backpressure from the excavator
• Cross-line relief valve – takes the stress off the motor allowing unforced momentum slow down
• Self-lubricating bearing proves better longevity
• Hoses favourably positioned inside the housing to reduce vulnerability
| Excavator Weight Range | 18T - 26T |
| Operating Weight | 860kg |
| Height | 1220mm |
| Plate Width | 900mm |
| Plate Length | 1350mm |
| Vib Frequency | 2200 rpm |
| Oil Flow | 120 - 170 lpm |
| Working Pressure | 100 - 130 Bar |
